Product Details

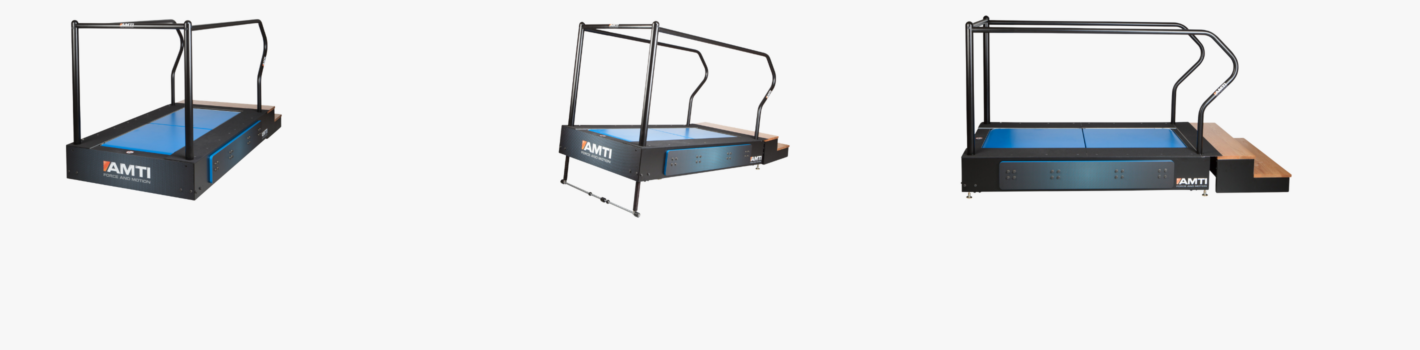

The AMTI Mobius tandem treadmill offers a unique advantage with its patented end-to-end configuration: unlike side-to-side split-belt treadmills, subjects can freely choose their stance width without data loss from “double support.” This promotes a natural gait pattern – without forcing foot placement.
Two independent, high-precision 6-axis force platforms provide complete bilateral forces during walking and running – even during double-support phases. The optional StrideWorks software resolves front/rear forces into left/right limb forces in real time and streams them directly into your motion capture software.
Features
Promotes natural gait
Accommodates crossover gait and side-to-side movement without widening stance – synchronized belt speeds for a seamless transition between belts.
Simple USB integration
Straightforward digital integration with all leading motion capture software – smart platform technology simplifies the user experience.
Optimized for biomechanics
Two 6-axis force platforms (8,900 N capacity), removable handrails for maximum marker visibility, bidirectional belt speed up to 19.3 km/h.
Specifications
Vertical force capacity
8,900 N
Horizontal force capacity
4,500 N
Force plate resonant frequency
300 Hz (Fx, Fy)
Linearity / Hysteresis
± 0.2% full scale output
Max. speed
19.3 km/h, bidirectional
Structural resonance frequency
120 Hz
Working surface per belt
75 × 61 cm
Total working surface
150 × 61 cm
Overall dimensions (incl. handrails)
203 × 112 × 125 cm
Weight
400 kg
Max. incline (optional)
25% grade (14°)
Power requirements
208 VAC, 3-phase, WYE, 20 A, 50/60 Hz
Applications
Gait & Running Analysis
Clinical Research / Rehabilitation
Sports / Performance Diagnostics
Motion Capture
Clinical Research / Rehabilitation
Sports / Performance Diagnostics
Motion Capture
Product brochure for the AMTI Mobius tandem treadmill with complete technical specifications.
You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
More InformationFAQ
What is the difference between an end-to-end configuration and a side-split treadmill?
On side-split treadmills, test subjects have to adopt an unnaturally wide stance. The end-to-end configuration allows for a free choice of track width whilst providing full bilateral force measurement, resulting in a more natural gait pattern.
How is the treadmill integrated into existing motion-capture systems?
Via a simple digital USB interface, compatible with all leading motion capture software solutions. Optionally, the StrideWorks software automatically converts the forces into left/right leg forces.
What should you do in the event of a fault, malfunction or when maintenance is required?
In the event of faults, malfunctions or upcoming maintenance requirements, please contact our support team: support@prophysics.ch.
Key features
- End-to-end configuration with or without inclination (25%)
- Two independent, high-precision 6DoF force plates with 8800 N in Fz
- Bidirectional belts with a maximum speed of 19.3 km/h
- Treadmill with high natural frequency (120 Hz) for clean data
- Analogue or digital outputs for each plate via the signal conditioner
